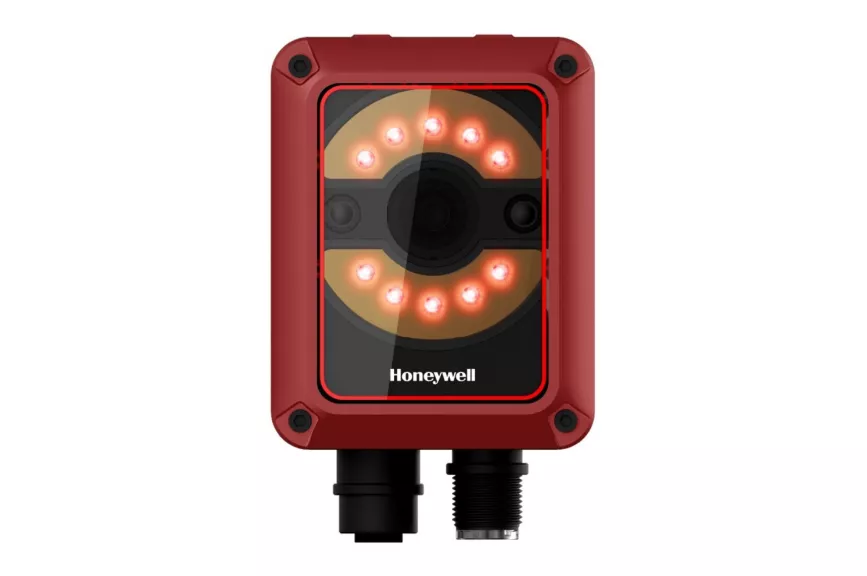

Honeywell HF811 Fixed Mount Scanner
The Honeywell HF811 Fixed Mount Scanner is a compact 2D industrial scanner designed for flexible integration into package sorting and light manufacturing processes. With enhanced encoding and decoding technology, a dedicated DPM algorithm, 2 MP resolution, IP65 protection, and support for standard 1D, PDF and 2D symbologies including QR, Datamatrix, Maxicode and Aztec DPM, the HF811 provides powerful scanning performance for manufacturing and warehouse management applications. It supports RS232, RS485, TCP/IP and Field Bus Protocol communications and offers a 3-year factory warranty.
Description
| MECHANICAL | Dimensions (H x W x D) | 70 mm x 55 mm x 45 mm |
| Weight | 180g | |
| Lens | Liquid Lens | |
| ELECTRICAL | Input Voltage | 240V |
| Output Current | 24VDC / 5A | |
| Communication | RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP) | |
| ENVIRONMENTAL | Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% relative humidity, non-condensing | |
| IP Rating | IP65 | |
| SCAN PERFORMANCE | HF811 Resolution | 2 MP |
| HF810 Resulution | 0.5 MP | |
| Scan Pattern | Area image | |
| Scan Angle – Horizontal | 20-39° (Narrow vs. Wide FOV) | |
| Scan Angle – Vertical | 11-22° (Narrow vs. Wide FOV) | |
| Decode Capability | Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM | |
| Warranty | 3-year factory warranty |
