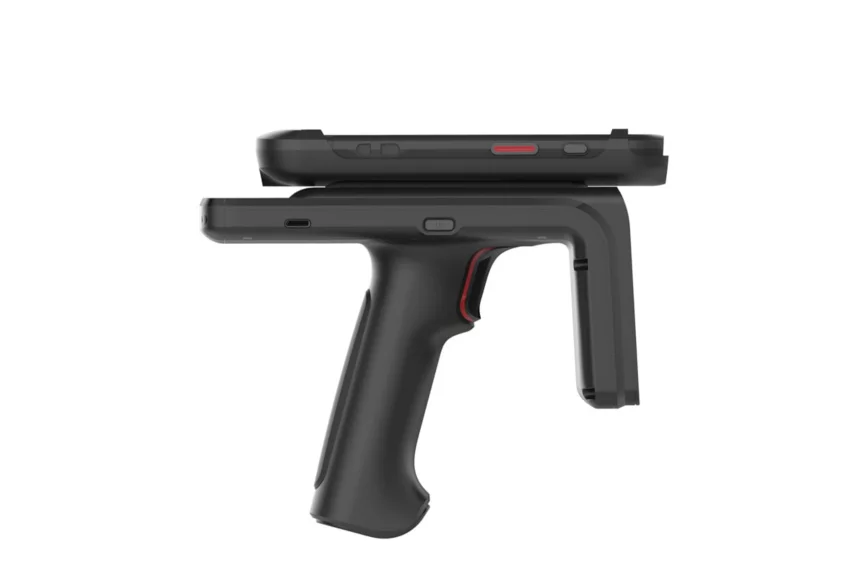

Honeywell IH25 Handheld RFID Reader
The Honeywell IH25 Handheld RFID Reader provides fast and accurate UHF RFID inventory capture for supply chain and retail inventory applications. Designed for efficient and extended use, the IH25 features an ergonomic, balanced design, high tag read rate, exceptional read range, Bluetooth V.5.0 connectivity, and a removable, rechargeable 3.8V Lithium Polymer 4000mAH battery. When paired with a Honeywell mobile computer, it also provides convenient integrated 1D/2D barcode capability.
Description
| RFID | Standards | EPC Class 1 Gen2, ISO 18000-6c, ISO 18000-63 |
| Antenna | Circular Polarized | |
| Filed | 120° forward-facing | |
| Frequency Ranges | EU: 865-868 MHzUS: 902-928 MHz | |
| Normal Read Range | 6m(20ft) | |
| Normal Write Range | 3m(10ft) | |
| COMMUNICATIONS | Bluetooth | V.5.0DIS Profile, BAS ProfileBLE |
| Bluetooth Pairing | Simple Secure Pairing | |
| POWER | Battery | Removable, rechargeable 3.8V Lithium Polymer 4000mAH |
| INDUSTRY STANDARDS | Industry Standard | EPC Global Class 1 Gen 2 |
| CHARGING | Charging | EDA51 Homebase Charging for Battery, PDA and RFID reader simultaneously, Quad Base for multi RFID readers charging, USB cable charging |
| ENVIRONMENTAL | Operating Temperature | -10° to 40° |
| Charging Temperature. | 0° to 40° | |
| Storage Temperature | -20° to 60° | |
| Humidity | 5-95% non-condensing | |
| Drop spec | Multiple 4ft/1.2m drops to concrete (0°-40°) | |
| Tumble spec | 1000 tumbles at 1.6ft/0.5m | |
| Sealing | IP54 | |
| Electrostatic Discharge | +/-15Kdc air discharge+/-8kVdc contact discharge | |
| COMPATIBLE COMPUTERS | Compatible Models | Dolphin CT40, ScanPal EDA51 |
| SOFTWARE | Demo Apps | Download from www.honeywellaidc.com |
| APK | on Android | |
| SDK | and technical document | |
| PHYSICAL CHARACTERISTICS | Dimension: Without Mobile Computer | 18577.8147mm |
| Weight | 430g without Mobile Computer | |
| Notifications | 4 LEDs and buzzer |
