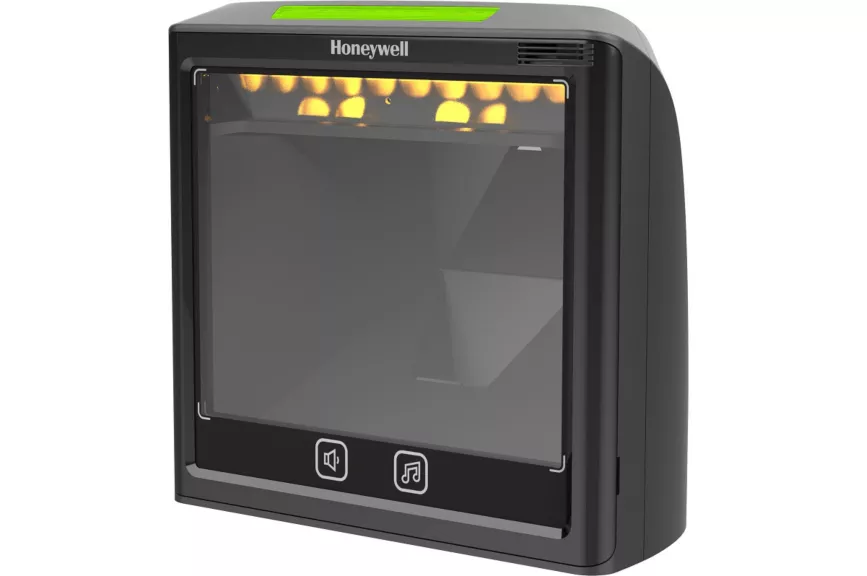

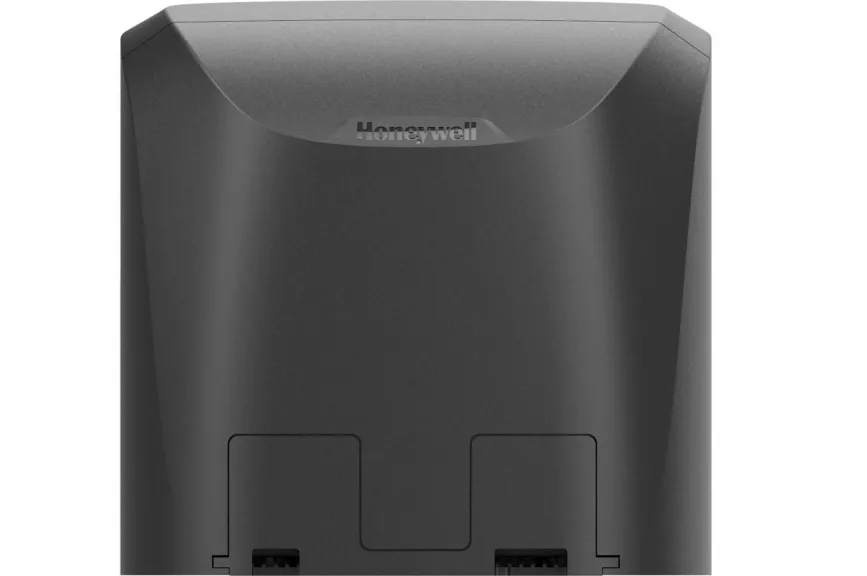

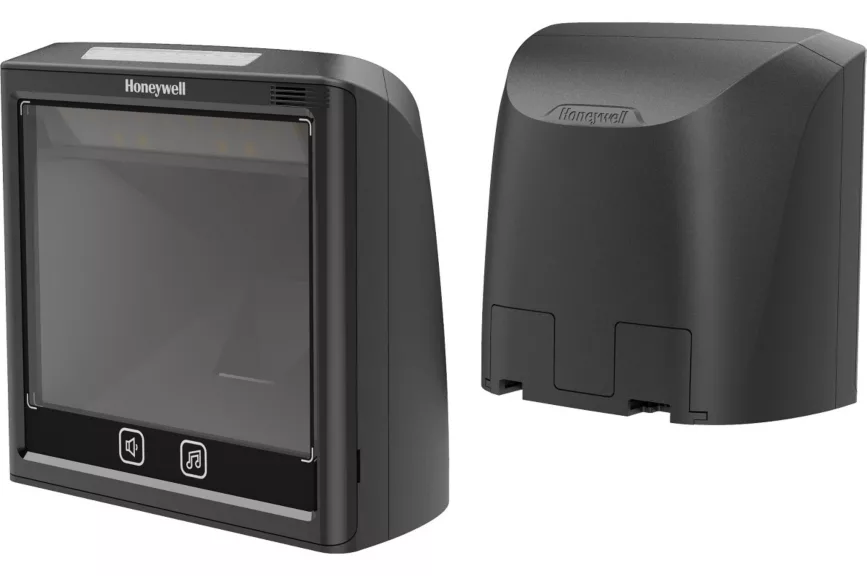

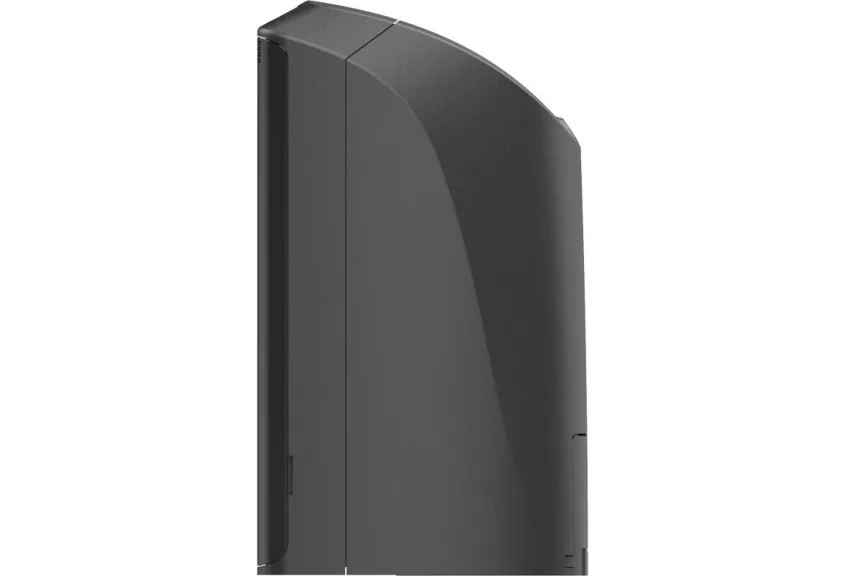

Honeywell Solaris XP 7990g Area-Imaging Vertical Slot Scanner
The Honeywell Solaris XP 7990g is an area-imaging vertical slot scanner designed for high-throughput presentation scanning. Built on Honeywell’s extreme performance (XP) platform, it features a compact, modern design and powerful imaging capabilities for high-volume retail checkout environments such as convenience, drug, specialty, liquor and grocery stores. The Solaris XP offers improved snappiness, 4+ m/s motion tolerance and a wider field of view compared to previous Solaris models. Its field-proven XP technology is designed to handle poorly printed and damaged barcodes with ease, while its backward compatibility with previous models helps make upgrades fast and simple.
Description
| MECHANICAL | Dimensions (H x W x D) | 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in) |
| Weight | 527g (18.6 oz) | |
| ELECTRICAL | Scanner Unit (not including auxiliary scanner) – Input Voltage | 5.0 V to 5.2 V |
| Operating Current | 400 mA | |
| Standby Current | 270 mA | |
| Sleep Mode Current | 210 mA | |
| Power Supply (sold separately) – Input Voltage | 100 V – 240 V/50 Hz – 60 Hz | |
| Output Current | 5.2 V / 1.0 A | |
| Host System Interfaces | USB, Keyboard Wedge, RS-232, IBM 46xx (RS485) | |
| ENVIRONMENTAL | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 5% to 95% relative humidity, non-condensing | |
| IP Rating | IP53 | |
| Light Levels | 100,000 lux | |
| SCAN PERFORMANCE | Scan Pattern | Area image (1280 x 960 pixel array) |
| Motion Tolerance | 4+ m/s for UPC 13 mil at optimal focal point | |
| Scan Angle – Horizontal | 42° | |
| Scan Angle – Vertical | 34° | |
| Print Contrast | 20% minimum reflectance difference | |
| Pitch, Skew | +/-65°, +/-75° | |
| Decode Capability | Reads standard 1D, PDF, 2D, Postal and OCR symbologies | |
| Warranty | 3-year factory warranty | |
| DEPTH OF FIELD | 5 mil (Code 39) | 10 mm to 140 mm (0.4 in to 5.5 in) |
| 13 mil (UPC-A) | 0 mm to 270 mm (0 in to 10.6 in) | |
| 20 mil (Code 39) | 0 mm to 300 mm (0 in to 11.8 in) | |
| 6.7 mil (PDF417) | 20 mm to 140 mm (0.8 in to 5.5 in) | |
| 20 mil (DM) | 15 mm to 190 mm (0.6 in to 7.5 ft) | |
| 20 mil (QR) | 0 m to 190 mm (0 in to 7.5 in) | |
| RESOLUTION | 1D (Code 39) | 3 mil |
| 2D (DM) | 8.3mil |
