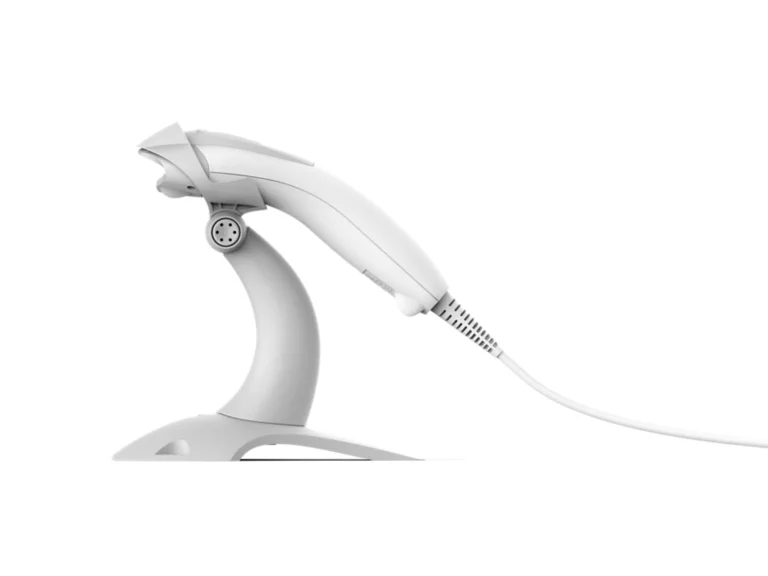

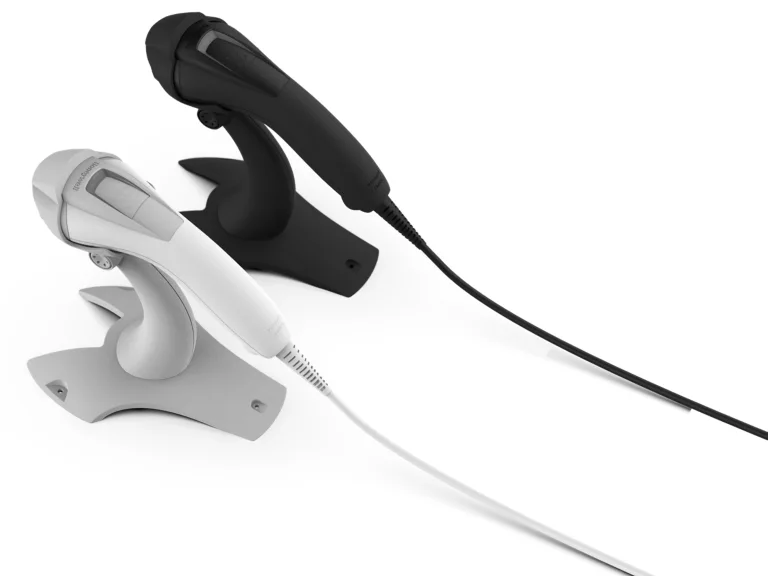

Honeywell Voyager Extreme Performance (XP) 1400g 2D Corded Scanner
The Honeywell Voyager XP 1400g is an accurate, durable and affordable 2D corded scanner designed for in-store retail environments. It delivers precise decoding performance on 1D and 2D barcodes, including poor and damaged codes, as well as digital screens. Its extended scan distance enables intuitive barcode reading for typical workflows, while support for up to 84 international keyboards and various POS system compatibility makes it easy to deploy in global retail environments. Engineered to withstand 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1400g is built for durability and is compatible with existing 1400g accessories.
Description
| MECHANICAL / ELECTRICAL | Scanner Dimensions (L x W x H) | 180 mm x 66 mm x 43 mm (7.1 in x 2.6 in x 1.7 in) |
| Scanner Weight | 119 g (4.2 oz) | |
| Input Voltage | 4.0V DC to 5.5V DC | |
| Operating Power | 2 W (400 mA @ 5V DC) | |
| Standby Power | 0.45 W (90 mA @ 5V DC) | |
| Host System Interfaces | USB certified (USB type C cable is available), Keyboard Wedge, RS-232 | |
| Keyboard Support | Support 84 international keyboards | |
| User Indicators | Good Decode LED, beeper (Adjustable tone and volume) | |
| ENVIRONMENTAL | Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) | |
| Electrostatic Discharge (ESD) | ±8 kV indirect coupling plane, ±15 kV direct air | |
| Humidity | 0% to 95% relative humidity, non-condensing | |
| Tumble (Scanner) | 1,000 0.5 m (1.6 ft) tumbles (impacts) | |
| Drop (Scanner) | Engineered to withstand 30 drops to concrete from 1.8 m (5.9 ft) | |
| Vibration (Scanner) | Withstands 5G peak from 5 to 300Hz | |
| Environmental Sealing (Scanner) | IP42 | |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) | |
| SCAN PERFORMANCE | Scan Pattern | Area Image (1040 x 720 pixel array) |
| Frame Per Second | 60FPS | |
| Motion Tolerance | 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus | |
| Print Contrast | 15% | |
| Scan Angle – Horizontal | 39.2° | |
| Scan Angle – Vertical | 27.4° | |
| Roll, Pitch, Skew | ±180°, ±65°, ±70° | |
| Illumination | Warm white LED (CCT 2700K) | |
| Aimer | Red dot LED, 624nm peak wavelength | |
| DECODE CAPABILITIES | 1D | Code 39, code 128, code 93, EAN, UPC, code 11, code 32 Pharmaceutical, codabar, China Post, GS1 databar |
| 2D | Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode | |
| Digital Watermarking | Digimarc | |
| OCR | OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface | |
| DECODE RANGES (DOF) | 5 mil Code 39 | 25 mm – 220 mm (1.0 in – 8.7 in) |
| 13 mil UPC | 25 mm – 410 mm (1.0 in – 16.1 in) | |
| 6.7 mil PDF417 | 20 mm – 200 mm (0.8 in – 7.9 in) | |
| 10 mil DM | 15 mm – 180 mm (0.6 in – 7.1 in) | |
| 20 mil QR | 10 mm – 360 mm (0.4 in – 14.2 in) | |
| MINIMUM RESOLUTION | Code 39 | 3 mil |
| PDF 417 | 4 mil | |
| QR | 6 mil | |
| DM | 5 mil | |
| REGULATORY | EMC | EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B, ICES-003 Issue 7 |
| Safety, Health and Environmental Compliance | EN62368-1, IEC 62368-1, IEC62471, IEC-63000(ROHS), UL 62368-1, CSA C22.2 NO. 62368-1 | |
| ACCESSORIES | Accessories | stands, wall mount holder, power supplies, cables |
| UTILITIES AND MANAGEMENT | Utilities and Management | EZConfig, SMU, Total Freedom, Scanner Edge, SDKs, Various Drivers |
| SERVICES | Services | Honeywell Edge Service |
| WARRANTY | Warranty | 5-year factory warranty |
