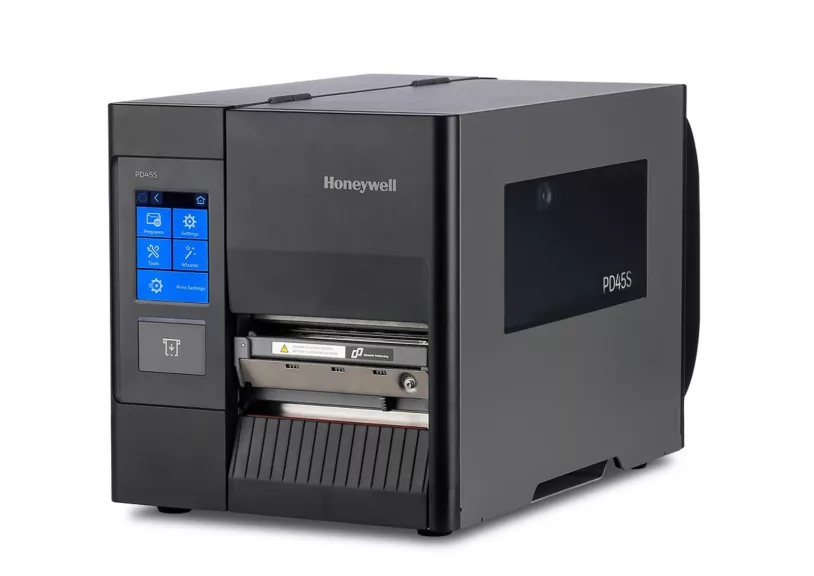

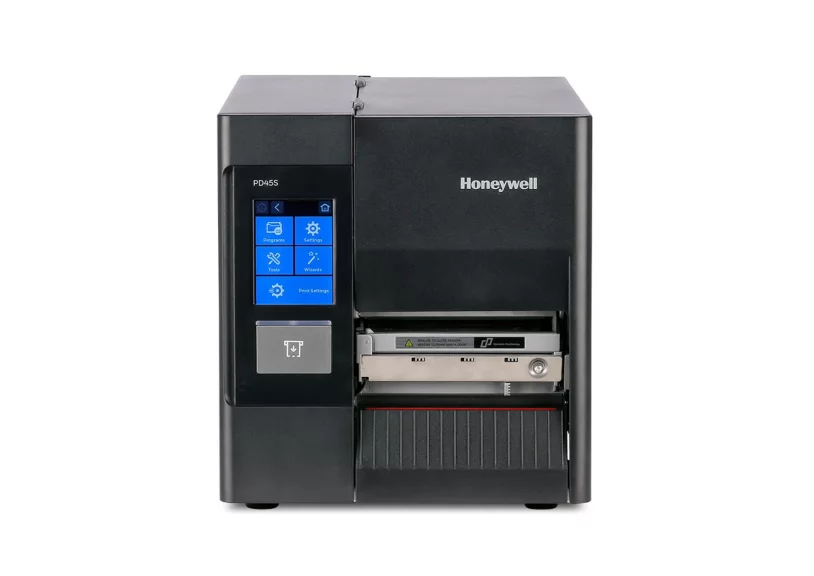

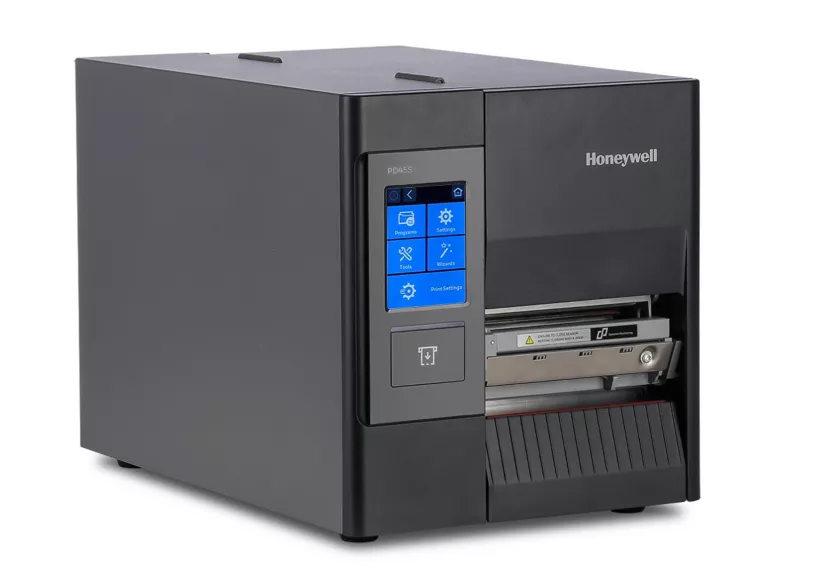

Honeywell PD45 Industrial Label Printer
The Honeywell PD45 is a commercial grade industrial printer suited for manufacturing, retail, transportation and logistics, health care, and government applications. It features smart printing capability, allowing users to configure and fine-tune settings without the need for a host computer by running apps directly inside the printer. With an all-metallic frame structure, the PD45 is designed to be sturdy, durable, compact and suitable for a wide range of working environments. It supports both direct thermal and thermal transfer printing modes and features a sophisticated industrial print head for high printing quality and durable performance. The PD45 also supports multiple printer command languages, one-key installation of printer drivers and easy Windows configuration.
Description
| GENERAL SPECIFICATION | Product models | PD4500C: 2.36” keyed LCD; PD4500B: LED, Feed button |
| Printing modes | Direct thermal and thermal transfer Printing | |
| Processors | Arm Cortex®-A7, 800MHz; 128 MB flash memory; 256 MB DDR3 SDRAM; Multi-GB USB storage device (FAT16/FAT32); Built-in real-time clock | |
| PRINT SPECIFICATIONS | Printing resolution | 203 dpi: 8 dots/mm; 300 dpi: 11.8 dots/mm |
| Printing speed | 203 dpi: 50 – 200mm/s (2-8ips); 300 dpi: 50 – 100mm/s (2-4ips) | |
| Maximum width | 203 dpi: 108 mm (4.25 inches); 300 dpi: 105.7 mm (4.16 inches) | |
| Maximum Continuous Print Length | 203 dpi: 4.8 m (15.75 ft); 300 dpi: 2.2 m (7.22 ft) | |
| MECHANICAL | Dimensions (L x H x W) | L: 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in) |
| Weight | 9.25Kg (20.39lbs) | |
| RIBBON SPECIFICATIONS | Ribbon supporting | Inner carbon or outer carbon |
| Maximum roll diameter | 80 mm (3.15 inches), about 450 m (1,476 feet) | |
| Roll core ID | 25.4 mm (1 inch) | |
| Max. /Min. Width (ribbon and roll core) | 110/51 mm (4.33/2.0 inches) | |
| MEDIA SPECIFICATIONS | Media types | Non-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper |
| Maximum/minimum width (label and liner) | 114/20 mm (4.5/0.79 in) | |
| Minimum label length | Paper tearing mode: 5.0 mm (0.197 inches); Cutter Mode: 38.0mm (1.5 inches) | |
| Thickness (label and liner) | 3 mil to 8.82 mil (0.076mm to 0.224mm) | |
| Configuration | External roll paper or folding paper | |
| Maximum diameter of label roll | 203.2 mm (8.0 inches) | |
| Label roll core | 76 mm (3.0 inches)/25.4mm (1.0 inches) | |
| PRINT INTERFACES | Standard | USB 2.0 host interface; USB 2.0 device interface; Ethernet interface, transmission rate: 10/100 Mbps (PD4500C only); RS-232, transmission rate up to 115.2 KB/s (PD4500C only) |
| Optional | WIFI (PD4500C only): IEEE 802.11 a/b/g/n/ac, WFA certified; Dual serial ports (PD4500C only): RS-232, RS-422 and RS-485, and 20 mA current loop, GPIO card | |
| OPERATING ENVIRONMENT | Operating temperature | +5°C to +40°C (+41°F to +104°F) |
| Storage temperature | -20°C to +70°C (-4°F to +158°F) | |
| Humidity | 20% to 85%, non-condensing | |
| BARCODES/FONTS/GRAPHICS | Barcodes | Supporting all main 1D and 2D symbols |
| Supporting standards | UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label, OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label and Global Transport Label) | |
| Font | Monotype font engine; non-Latin fonts can be supported through WTLE, and customers can also download (Truetype) fonts by themselves. | |
| Graphics | It supports PCX, PNG, GIF and BMP file formats. Other formats can be supported by Label Generation Tools. | |
| SOFTWARE | Printer command languages | Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL; XML can be enabled for SAP AII and Oracle WMS |
| Application programs / Driver programs | InterDriver Windows printer drive and one-key installation driver, CUPS driver for Linux, program packages for Honeywell device type for SAP and Honeywell label design and printing | |
| Smart Printing languages | Honeywell’s special C# languages for printers: Smart Printing Developer Resource Kit; write application in the development environment compatible with .NET. | |
| Configuration and equipment management support | Printset supports Windows to configure printers; the mature Web interface is used for configuration and one-to-one management | |
| USER INTERFACE LANGUAGES | Color CNC LCD and WEB interface | English, Italian, French, Spanish, Portuguese, German, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese and Thai |
| POWER SUPPLY | Power supply | PFC power supply with the rated power of 100W; AC voltage: 100V AC to 240V AC, 50Hz to 60Hz |
| APPROVALS | Compliance | CB \ CE; for more compliance information, please contact your local sales representative. |
