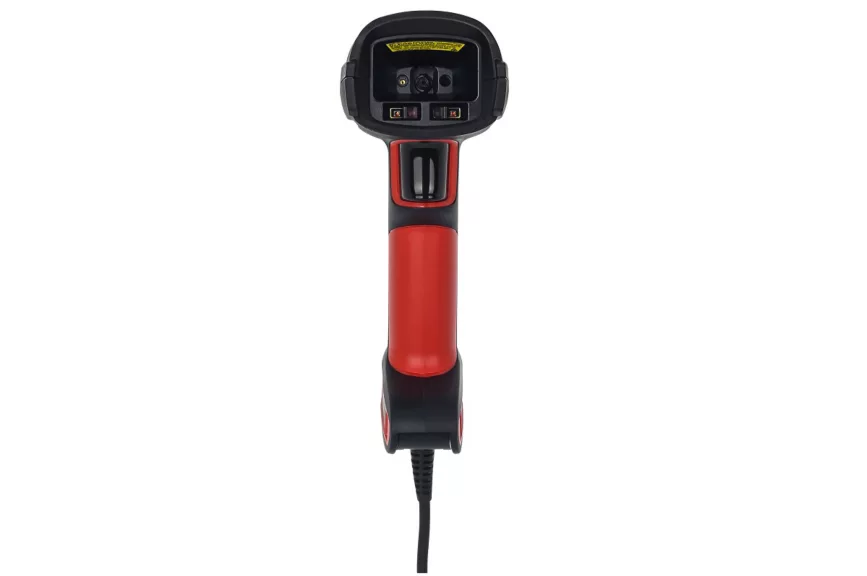

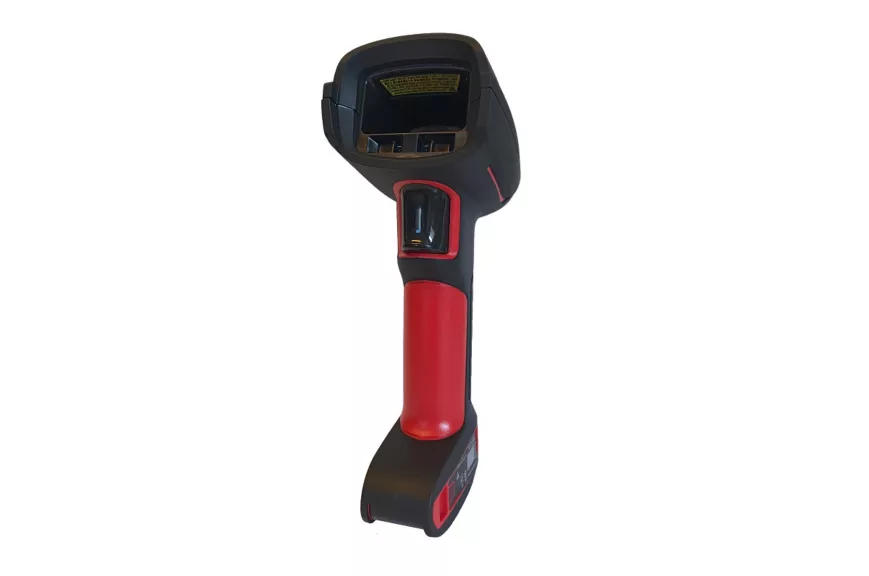

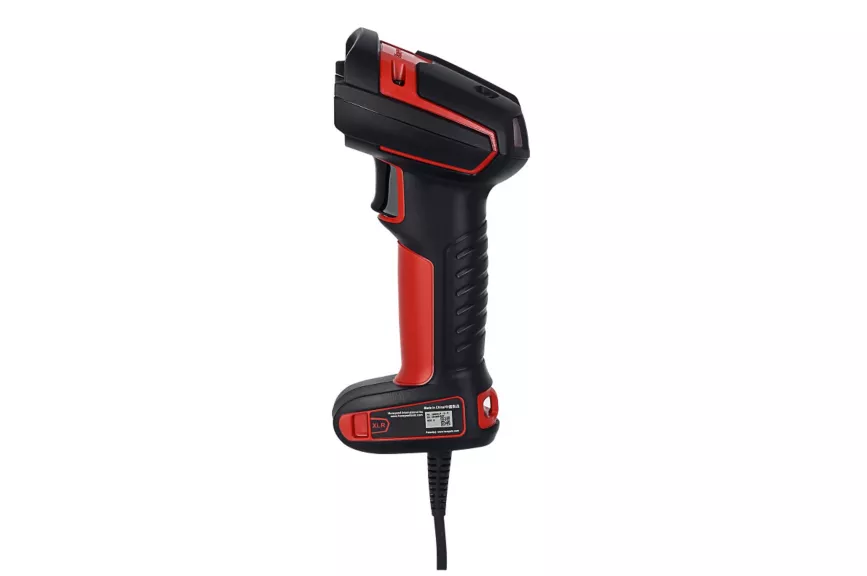

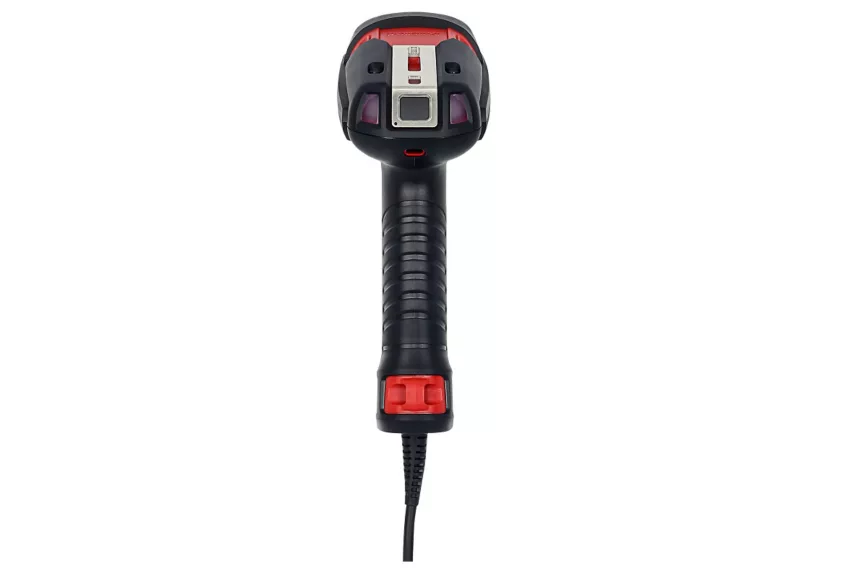

Honeywell Granit XP 1990iXLR
The Honeywell Granit XP 1990iXLR is an ultra-rugged long-range corded industrial handheld scanner built to streamline high-density warehouse, manufacturing, and distribution workflows. Powered by Honeywell’s next-generation imaging platform and enhanced decoding algorithms, it tackles poorly printed or heavily damaged barcodes with exceptional accuracy, eliminating process bottlenecks. The integrated XLR long-range technology provides seamless, no-sacrifice near-field scanning alongside the extreme depth of field needed to read standard UPC labels at 2 meters (6.6 feet) and 100 mil rack labels up to a massive 24 meters (79 feet) away. Engineered to survive the toughest floor treatment, the 1990iXLR features a deeply recessed scratch-resistant window, dual IP65/IP67 environmental protection sealing, and high impact survival metrics capable of withstanding 3-meter (10-foot) concrete drops and 7,000 continuous tumbles.
Description
| MECHANICAL | Dimensions (L x W x H) | 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) |
| Weight – Corded | 320 g (11.3 oz) | |
| User Indicators | Good Decode LEDs • Beeper (adjustable tone and volume) • Vibration (adjustable) | |
| ELECTRICAL | Input Voltage | 4.0 VDC to 5.5 VDC |
| Operating Power – Corded | 2.35 W (470 mA @ 5 VDC) | |
| Standby Power – Corded | 0.5 W (100 mA @ 5 VDC) | |
| Host System Interfaces | USB • Keyboard Wedge • RS-232 TTL | |
| ENVIRONMENTAL | Operating Temperature | -30°C to 50°C (-22°F to 122°F) with industrial-grade cable |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | Up to 95% relative humidity (non-condensing) | |
| Drop (Standard Multi) | 1.8 m (6 ft) • 50 drops from -30°C to 50°C (-22°F to 122°F) under uncontrolled RH | |
| Drop (Extended Temp) | 2.4 m (8 ft) • 20 drops at 25°C (77°F) under 55% RH | |
| Drop (MIL-STD-810G) | 3 m (10 ft) • Tested at 25°C (77°F) under 55% RH | |
| Tumble Specification | 7,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification | |
| Environmental Sealing | Independently certified to meet IP67 and IP65 standards | |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) | |
| ESD Protection | ±20 kV Air discharge • ±8 kV Contact Direct discharge | |
| SCAN PERFORMANCE | Scan Pattern | Area Imager |
| Sensor Array (Near) | 1280 x 800 pixel array • Global Shutter | |
| Sensor Array (Far) | 1920 x 1080 pixel array • Rolling Shutter | |
| Motion Tolerance | Up to 4500 mm/s (177 in/s) | |
| Print Contrast | 20% minimum reflectance difference | |
| Roll, Pitch, Skew | -360°, 45°, 65° | |
| Decode Capabilities | Reads standard 1D • PDF • 2D • Postal • Digimarc • DOT Code • OCR symbologies | |
| WARRANTY | Scanner Protection | Three-year factory hardware warranty |
