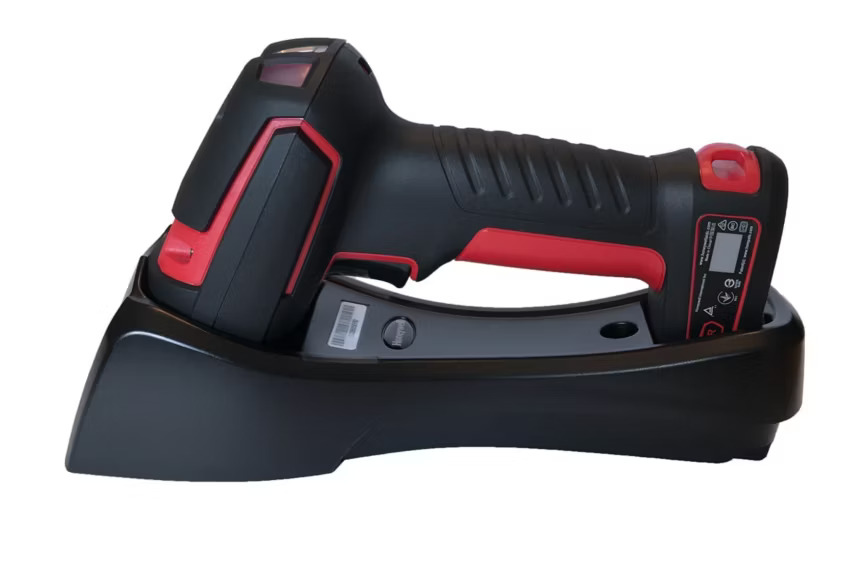

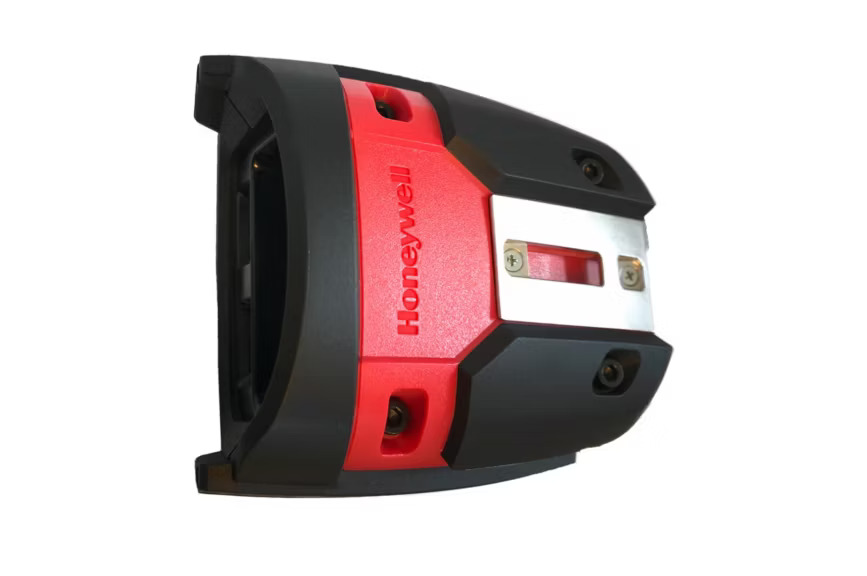

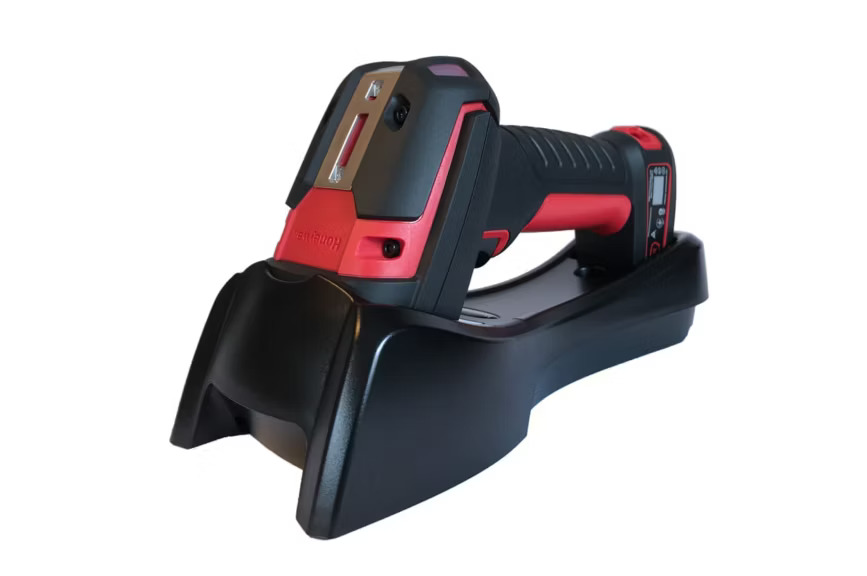

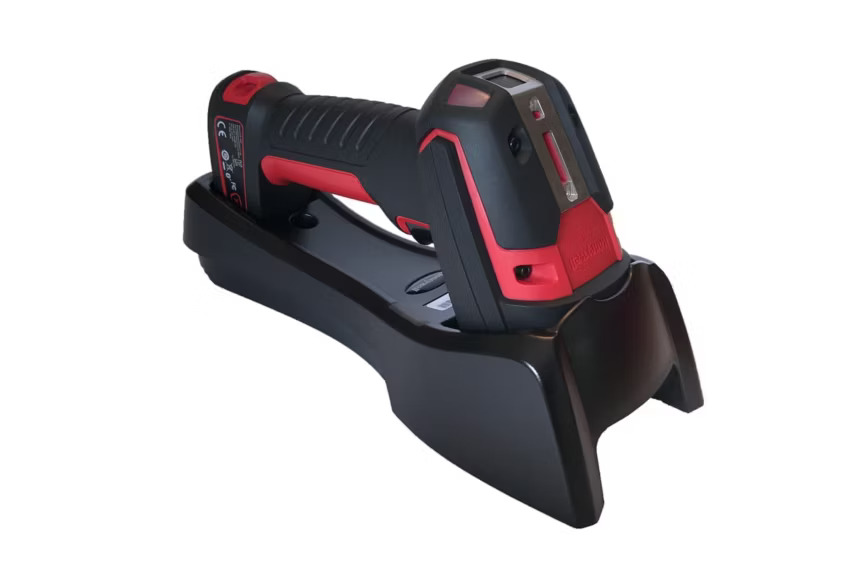

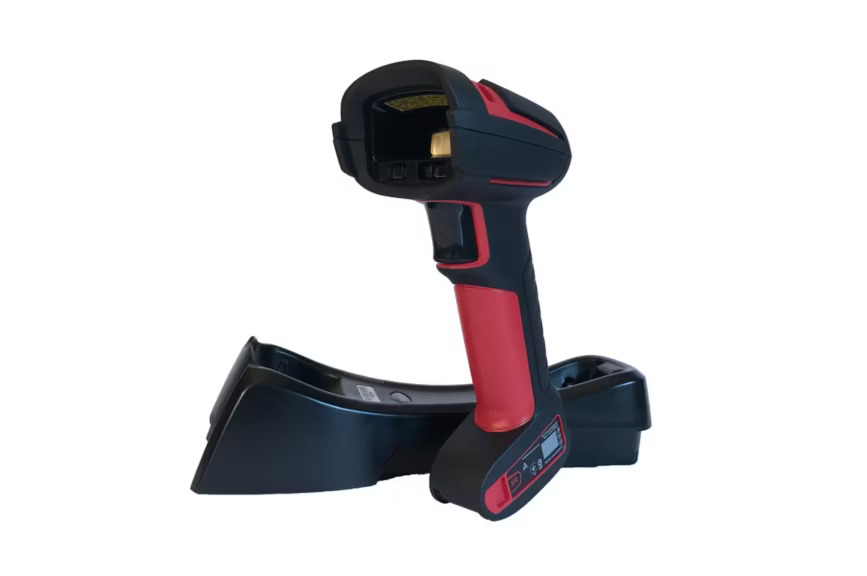

Honeywell Granit XP 1991iXR
The Honeywell Granit XP 1991iXR is a wireless ultra-rugged area-imaging scanner engineered to deliver absolute reliability and high-speed data capture in demanding industrial settings. Built on Honeywell’s next-generation imaging platform, it utilizes a high-resolution sensor and enhanced decoding algorithms to instantly read poorly printed, degraded, or damaged barcodes. Equipped with FlexRange™ technology, the cordless 1991iXR effortlessly handles near-field scans while expanding its reach to capture standard 13 mil UPC labels up to 1.5 meters (5 feet) and 100 mil rack labels at a distance of 10 meters (33 feet). It features an armored architecture that survives 3-meter (10-foot) concrete drops, 7,000 tumbles, and sub-zero operating environments, all protected by a deeply recessed scratch-resistant window and an elite IP67 environmental sealing rating.
Description
| MECHANICAL | Dimensions – Scanner (L x W x H) | 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) |
| Dimensions – Base (L x W x H) | 245 mm x 102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in) | |
| Weight – Cordless | 405 g (14.3 oz) | |
| WIRELESS | Radio Frequency / Range | 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2 • Class 1: 100 m (330 ft) line of sight |
| POWER OPTIONS | Battery Type / Minimum Capacity | Li-ion minimum • 2450 mAh |
| Number of Scans per Charge | Up to 50,000 scans | |
| Expected Duration of Operation | 14 hours (at 1 scan per second baseline) | |
| User Status Indicators | Good Decode LEDs • Beeper (adjustable tone/volume) • Vibration (adjustable) • Bluetooth connectivity • Battery status | |
| ELECTRICAL | Input Voltage Range | 4.0 VDC to 5.5 VDC |
| Operating Power – Cordless | 5 W (1000 mA @ 5 VDC) | |
| Standby Power – Cordless | 0.6 W (120 mA @ 5 VDC) non-charging power state | |
| Host System Interfaces | USB • Keyboard Wedge • RS-232 TTL | |
| ENVIRONMENTAL | Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) with industrial-grade cable pairing |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | |
| Relative Humidity Limits | Up to 95% relative humidity, non-condensing | |
| Drop Survival (Standard) | 2 m (6.5 ft) • 50 drops from -30°C to 50°C (-22°F to 122°F) under uncontrolled RH conditions | |
| Drop Survival (Extreme) | 2.4 m (8 ft) • 20 drops at 25°C (77°F) under 55% RH conditions | |
| Drop Survival (MIL-STD) | 3 m (10 ft) • MIL-STD-810G configuration tested at 25°C (77°F) under 55% RH conditions | |
| Tumble Specifications | 7,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification | |
| Environmental Sealing – Scanner | Independently certified to meet IP67 and IP65 standards | |
| Environmental Sealing – Base | Independently certified to meet IP51 standards | |
| Ambient Light Exposure Limits | 0 to 100,000 lux (9,290 foot-candles) | |
| ESD Protection Limits | ±20 kV Air discharge • ±8 kV Contact discharge | |
| SCAN PERFORMANCE | Scan Pattern / Architecture | Area Imager (1280 x 800 pixel sensor array) |
| Max Motion Tolerance | Up to 4500 mm/s (177 in/s) | |
| Optical Scan Angles | Horizontal: 40° • Vertical: 30° | |
| Print Contrast Minimums | 20% minimum reflectance difference threshold | |
| Physical Roll / Pitch / Skew | -360° • 45° • 65° | |
| 1D / 2D Decode Capabilities | Reads standard 1D • PDF • 2D • Postal • Digimarc • DOT Code • OCR symbologies | |
| WARRANTY | Scanner Unit Coverage | Three-year factory hardware warranty |
| Battery Pack Coverage | One-year factory battery cell warranty |
