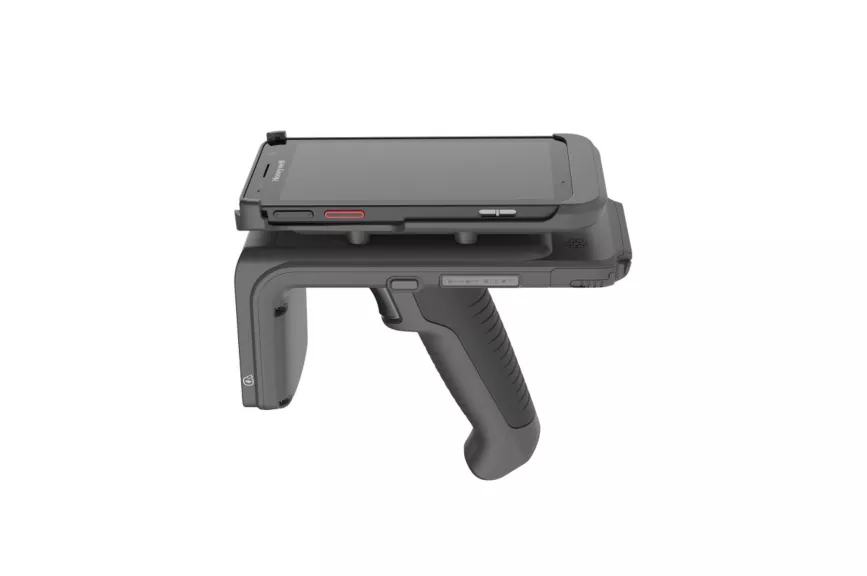

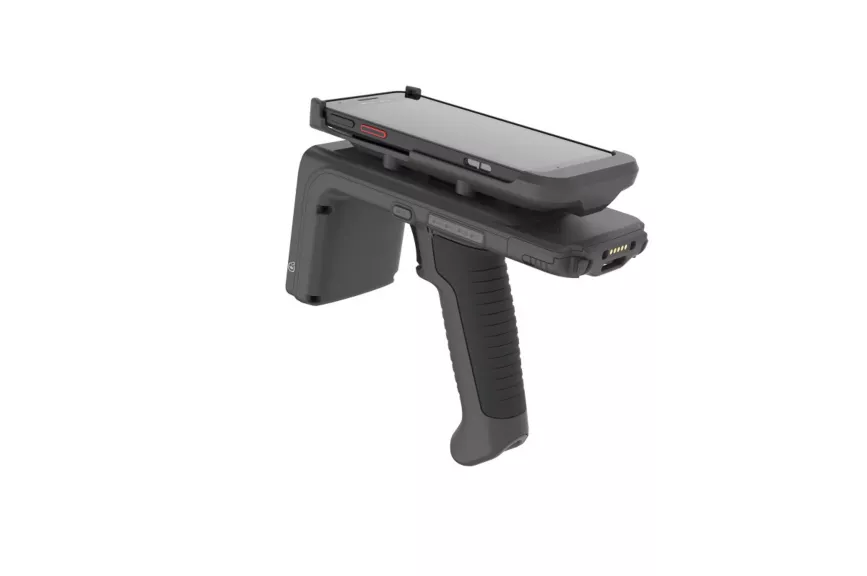

Honeywell IH45 Handheld RFID Reader
The Honeywell IH45 Handheld RFID Reader enables fast and accurate UHF RFID inventory capture for retail, transportation and logistics, and supply chain inventory applications. Ergonomically balanced for comfortable, all-day use, the IH45 features an enhanced read range, Bluetooth® V.5.0, direct USB connection to a mobile device, NFC tag for Bluetooth pairing, and a rechargeable 3.8V lithium polymer 4000mAH battery that can be removed without tools and without removing the mobile device. When paired with a Honeywell mobile computer, the IH45 also provides convenient integrated 1D/2D barcode capability.
Description
| RFID | Standards | EPC Class 1 Gen2, ISO 18000- 6c, ISO 18000-63 |
| Antenna | Circular polarized | |
| Field | 120° forward-facing | |
| Frequency Ranges | EU: 865 MHz to 868 MHzUS: 902 MHz to 928 MHz | |
| Normal Read Range | 6 m (20 ft) | |
| Normal Write Range | 3 m (10 ft) | |
| MECHANCIAL | Dimensions | 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in) without mobile computer |
| Weight | 450 g (0.99 lb) without mobile computer | |
| Notifications | 4 LEDs and beeper | |
| ENVIRONMENTAL | Operating Temperature | -10° to 40° |
| Charging Temperature. | 0° to 40° | |
| Storage Temperature | -20° to 60° | |
| Humidity | 5 % to 95 % non-condensing | |
| Drop | Multiple 1.2 m (4 ft) drops to concrete (0° to 40°) | |
| Tumble | 1000 tumbles at 0.5 m (1.6 ft) | |
| Sealing | IP54 | |
| Electrostatic Discharge | ±15Kdc air discharge±8kVdc contact discharge | |
| COMMUNICATIONS | Bluetooth® | V.5.0DIS Profile, BAS Profile BLE |
| Bluetooth Pairing | Simple Secure Pairing | |
| NFC | NFC tag is intergraded for Bluetooth pairing | |
| Direction Connection | Devices connect directly through USB to mobile device | |
| POWER | Battery | Rechargeable 3.8V lithium polymer 4000mAH battery, removable without tools and without removing the mobile device |
| INDUSTRY STANDARDS | Industry Standard | EPC Global Class 1 Gen 2 |

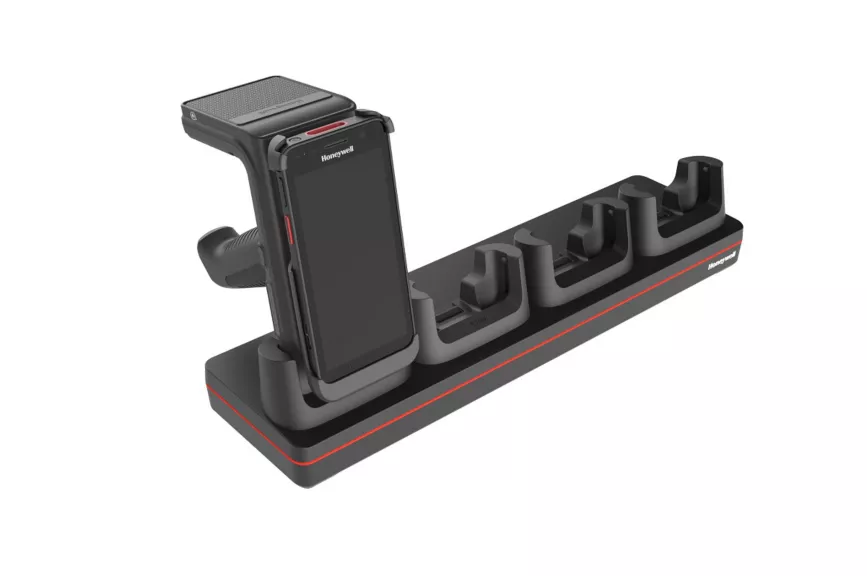

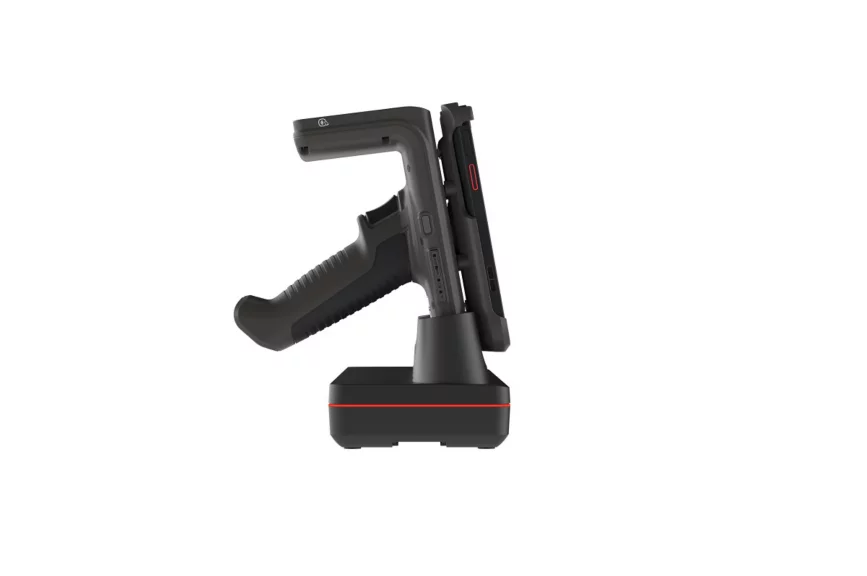

| CHARGING | Charging | Includes 4,000 mAh removable battery.IH45 charges with all CT40 charge docks with non-booted cup, or booted cup with adapter sleeve. including universal dock family.IH45 and other computers, if attached, charge simultaneously.Spare batteries can be charged separately using EDA51 battery chargers. |
| COMPATIBLE COMPUTERS | Compatible Models | CT30 XP, CT40/XP, CT45/XP, CT47, CT60/XP, EDA51/K, EDA52, EDA56, EDA57 |
| SOFTWARE | Demo Apps | Download from www.honeywellaidc.com |
| APK | on Android™ | |
| SDK | and technical document |
